Pulse Width (On-Time)

Frequency (Repetition Rate)

Pulse width exceeds total period!

Duty Cycle

0.00%

Total Period (T)

Off-Time

Average Power

Peak Power

Average power cannot exceed Peak power!

Duty Cycle

0.00%

Pulse Width

Repetition Rate (Freq)

Peak Power

Duty Cycle

0.00%

Average Power

Pulse Energy

ephotonics

linkedin.com/company/ephotonics

Follow our page for weekly laser engineering guides, photonics tutorials, and new calculator releases directly in your feed.

Follow on LinkedIn

Related Calculators

All

Laser Peak Power Convert average/peak power via duty cycle

Pulse Energy Calculator Find energy per pulse from rep rate

Power Density (Fluence) Calculate irradiance for pulsed systems

Wall-Plug Efficiency Find optical efficiency from electrical input

How the Duty Cycle Calculator Works

Duty Cycle represents the fraction of time a system is activ or "on" compared to the total duration of a single cycle. It is a fundamental concept used in both electronics (Pulse Width Modulation) and photonics (pulsed lasers) to determine how much average power is being delivered over time.

$$D = \left( \frac{\tau}{T} \right) \times 100\% \quad \text{or} \quad D = \left( \frac{P_{avg}}{P_{peak}} \right) \times 100\%$$

Duty Cycle Formulas (Time-Based & Power-Based)

Where:

$D$ Duty Cycle (%).
$\tau$ Pulse Width or On-Time (seconds).
$T$ Total Period (seconds), which equals $1 / \text{Frequency}$.
$P_{avg}$ Average Power (Watts).
$P_{peak}$ Peak Power (Watts).

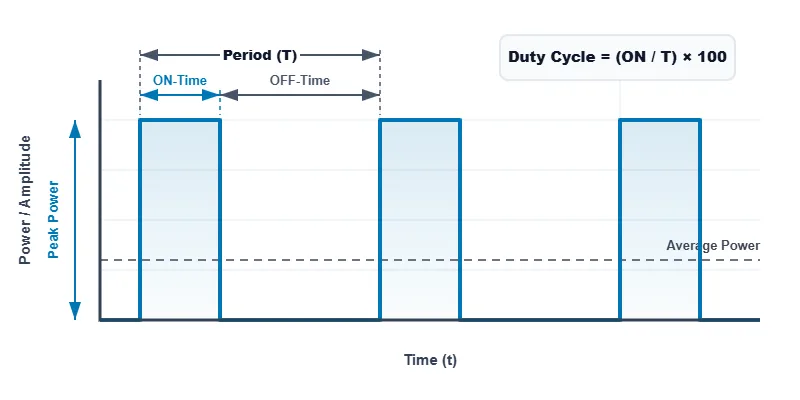

Diagram showing a square wave pulse train with Pulse Width, Off-Time, and Total Period labeled to illustrate Duty Cycle.

Figure 1: A visual representation of a pulse train. The Duty Cycle is the ratio of the Pulse Width ($\tau$) to the Total Period (T). If the pulse is on for 2ms and off for 8ms, the total period is 10ms, resulting in a 20% duty cycle.

Quick Reference

0% DC: The system is completely off (no power delivered).
50% DC: A perfect square wave. The system is active exactly half the time.
100% DC: Continuous operation (Continuous Wave / CW). Average power equals Peak power.
Thermal Management: In lasers, a very low DC value allows for incredibly high peak powers (megawatts or gigawatts) while keeping average thermal power low enough to avoid melting components.

Typical Duty Cycles by Application

Linear scale representing the percentage of ON-time vs OFF-time.

20%

40%

60%

80%

100%

Mode-locked Lasers

< 0.001%

LIDAR Systems

~ 0.1%

Servo Motor PWM

5 - 10%

Laser Ablation

~ 30%

Square Wave AC

50%

LED Dimming (High)

80%

CW Laser (Always On)

100%

Source: Typical parameters vary heavily depending on specific hardware and configuration.

Why Calculate Duty Cycle (DC)?

In both electronics and laser optics, a system cannot always run at 100% power without melting. It allows engineers to bridge the gap between delivering incredibly high bursts of energy (peak power) and managing the long-term thermal load of the system (average power).

Key takeaways

Lower DC = higher peak power allowable for the same average thermal load.
Pulse Width Modulation (PWM) relies entirely on duty cycle to dim LEDs or control motor speeds without changing voltage.
Thermal management is directly tied to the off-time of your duty cycle.
In lasers, duty cycle is simply the ratio of Average Power to Peak Power.

Why Duty Cycle (DC) Matters

1. Thermal Management & Cooling

Every electronic component and optical crystal has a thermal limit. If a laser diode outputs 100W continuously (100% DC), it may overheat and fail. By running it at a 10% DC, it still delivers 100W of peak force, but the average heat generated is only 10W, allowing standard heatsinks to cool it effectively.

2. Pulse Width Modulation (PWM)

How do you dim an LED if you only have a 5V power supply? You use PWM. By rapidly turning the LED on and off (e.g., a 50% DC), the human eye perceives it as being at half brightness. This concept is fundamentally used in servo motors, switching power supplies, and digital logic.

3. High Peak Power for Ablation

In materials processing, you need massive peak power to instantly vaporize metal (ablation) without melting the surrounding area. By using an extremely low DC (e.g., 0.001%), lasers can compress their energy to achieve Megawatts of peak power while keeping the average power safe and manageable.

4. Battery Life & Efficiency

For IoT devices, LIDAR, and remote sensors, battery life is everything. Instead of transmitting continuously, a sensor might wake up for 1 millisecond every second (a 0.1% DC). This extends battery life from a few days to several years while still gathering crucial data.

In-depth article Peak Power & Duty Cycle Guide Learn the mathematical relationship between duty cycle, peak power and pulse energy in modern optical systems.

→
