600 W output capacity
Combines up to 10 A of diode current with up to 60 V compliance for a maximum electrical output of 600 W.

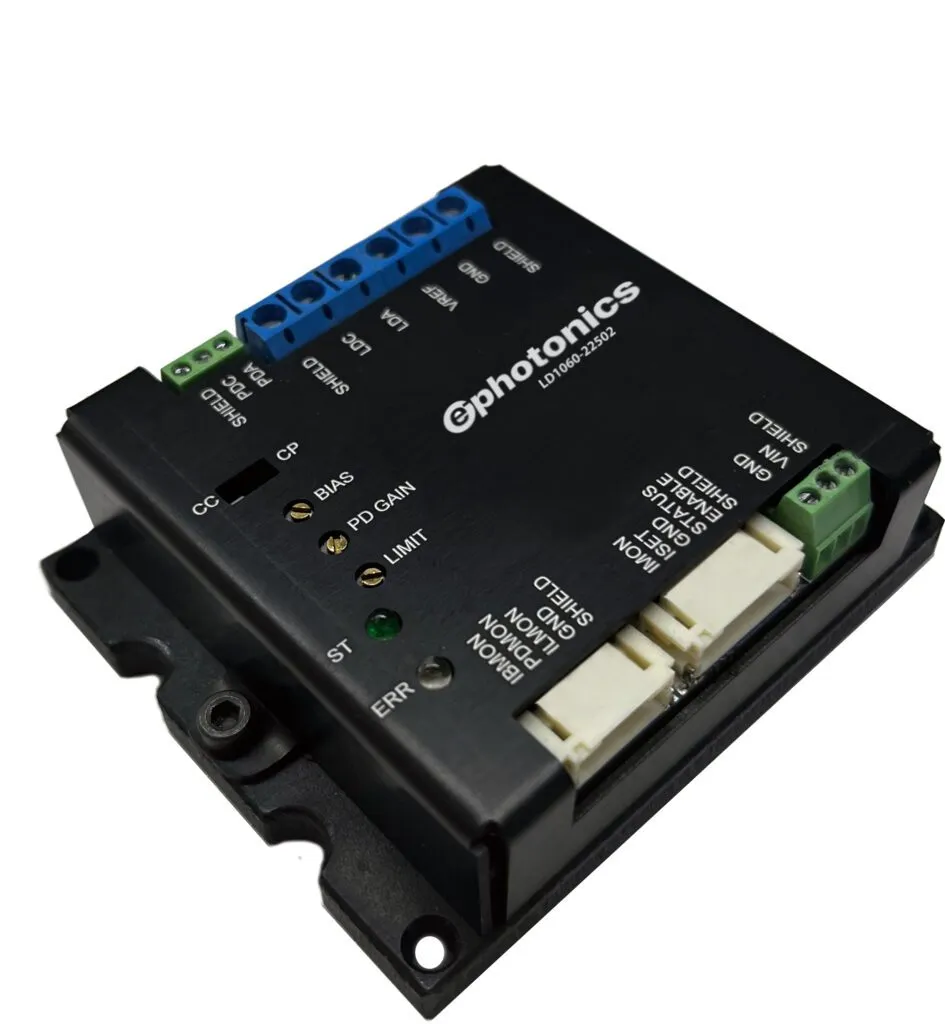

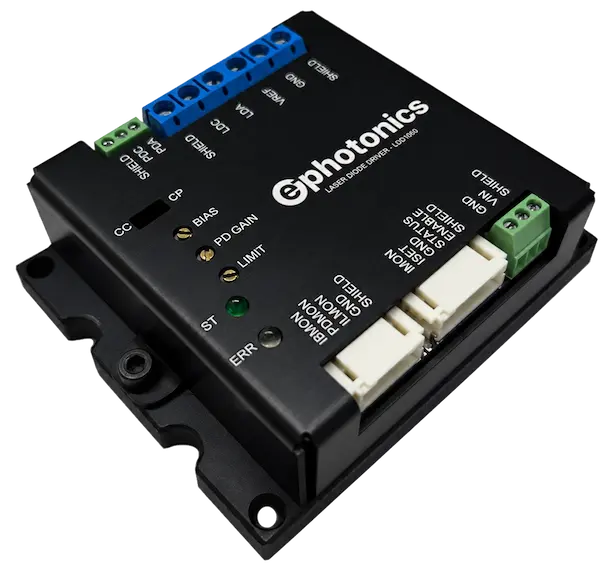

The LDD1060 is a compact 600 W laser diode driver engineered for higher-voltage OEM, industrial and laboratory laser systems. It delivers up to 10 A of output current with up to 60 V compliance voltage and supports continuous-wave (CW) and quasi-continuous-wave (QCW) operation.
Combines up to 10 A of diode current with up to 60 V compliance for a maximum electrical output of 600 W.
The higher compliance-voltage range supports laser diode loads that require more voltage headroom while maintaining controlled current.
Supports CW and QCW operation together with constant-current and constant-power control options.
Modulates up to 50 kHz, with a 2 µs rise time and 2.5 µs fall time for responsive control.
Greater than 94% power efficiency helps limit electrical losses when the driver is installed with suitable thermal management.
The compact driver can be integrated into OEM laser platforms, with customized configurations available for specialized requirements.
| Diode current | 0–10 A |
|---|---|
| Diode voltage | 0–60 V |
| Supply voltage | 11–36 VDC |
| Output power | 600 W |
| Maximum power dissipation | 35 W |
| Power efficiency | >94% |
| Maximum modulation frequency | 50 kHz |
| Rise time | 2 µs |
| Fall time | 2.5 µs |
| Diode-current setpoint | 0–5 V |
| Long-term current stability | 250 ppm |
| Enable control | TTL |
| Adjustable current limit | Yes |
| Constant-current / constant-power option | Yes |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | −40–85 °C |
| Dimensions | 74 × 63 × 26 mm |
| Weight | 140 g |
The LDD1060 combines 10 A current capacity with 60 V compliance for laser systems that require greater voltage headroom and up to 600 W of electrical output. Its fast modulation, adjustable control and compact format make it suitable for demanding OEM, industrial and laboratory applications, including:
We offer custom laser diode drivers according to your needs either high power or low power version, for single and multi-emitter diodes. To discuss your custom laser diode driver needs, you could contact us by sending us an e-mail or using the contact form.
