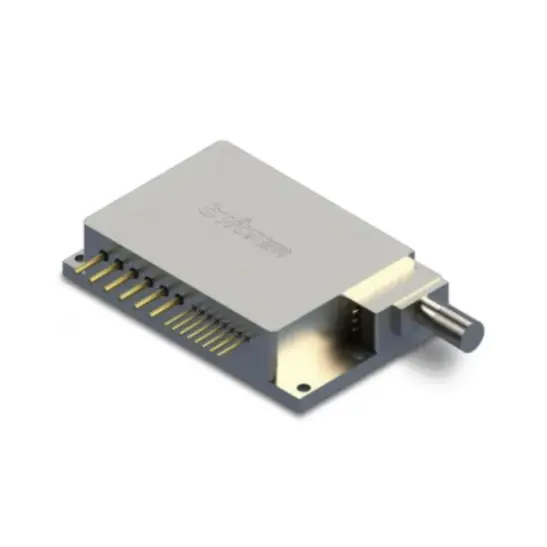

980 nm / 1470 nm Dual-Wavelength Fiber Coupled Laser Diode

WAVELENGTH

980nm/1470 nm

POWER

30 W/15 W

FIBER CORE

200 µm

NA

0.22

Key features

Dual-Wavelength (980nm + 1470nm)
• High-Brightness Fiber Core
• Precision Monitor Photodiode
Visible 635 nm Red Aiming Beam
• Detachable SMA905 Fiber Architecture
• Replacable Windows Panels
• Rugged Industrial Package

Applications

Advanced Surgical System
• Urological Soft-Tissue Surgery
• Aesthetic & Lipolysis
• Dental Soft-Tissue Procedures
ENT (Ear, Nose, and Throat) Surgery
Scientific Research & Lab Development



Custom configurations & wavelengths available

Uncompromising performance

The 980 nm + 1470 nm Multi-Wavelength Detachable Diode Laser is an advanced dual-source module designed for sophisticated medical procedures requiring simultaneous or independent tissue interaction. By integrating a high-power 30 W / 980 nm source with a high-precision 15 W / 1470 nm source into a single 200 µm detachable fiber, this module provides surgeons with the “gold standard” wavelengths for both hemostatic cutting and deep-tissue ablation. Engineered for mission-critical clinical environments, the KD030 series features an integrated visible 635 nm aiming beam for exact surgical guidance and dual monitor photodiodes (PD) for real-time power verification of each wavelength. Housed in a robust, multi-function package with high electrical efficiency and integrated thermal monitoring, it serves as the ultimate engine for turn-key surgical systems in urology, proctology and endovenous treatment and for scientific research.

SPECIFICATIONS ( 25°C ) SYMBOL UNIT KD030H015A5CC-Y1Y
MINIMUM TYPICAL MAXIMUM
980nm
SOURCE(1)
CW Output Power Po W 30
Center Wavelength λc nm 980 ± 10
Threshold Current Ith A 1.0
Operating Voltage Vop V 5 6
1470nm
SOURCE(1)
CW Output Power Po W 15
Center Wavelength λc nm 1470 ± 20
Threshold Current Ith A 0.2
Operating Voltage Vop V 9.0 10.5
FIBER
DATA
Core Diameter Dcore μm 200
Numeric Aperture NA 0.22
Fiber Connector SMA905
MONITOR Thermistor (Resistance) Rt (K Ω) 10 ± 3%
980 PD Monitor Current PD μA 100 3000
1470 PD Monitor Current PD μA 100 1000
AIMING
BEAM
Output Power Pa mW 2
Wavelength λa nm 635 ± 10
Voltage Va V 5V (Constant)
