Calculate pulse energy from average power and repetition rate. Results update instantly as you type.

Average Power (P_avg)

Repetition Rate (f_rep)

Pulse Energy ---

E = P_avg / f_rep

ephotonics

linkedin.com/company/ephotonics

Follow our page for weekly laser engineering guides, photonics tutorials, and new calculator releases directly in your feed.

Follow on LinkedIn

Related Calculators

All

Laser Peak Power Convert pulse energy to peak watts

Power Density Calculate fluence J/cm² from pulse energy

Laser Beam Spot Size Find spot area to compute fluence

Laser Safety (NOHD) Check safe distance for pulsed systems

How the Laser Pulse Energy Calculator Works

Most laser power meters measure average power over time. For pulsed lasers, however, the energy is concentrated into brief discrete bursts. To find the energy of a single pulse, divide the total average power by the number of pulses per second.

$$E = \frac{P_{avg}}{f_{rep}}$$

Pulse Energy Formula

Where:

$E$ Energy in Joules (J).
$P_{avg}$ Average power in Watts (W).
$f_{rep}$ Repetition rate in Hertz (Hz).

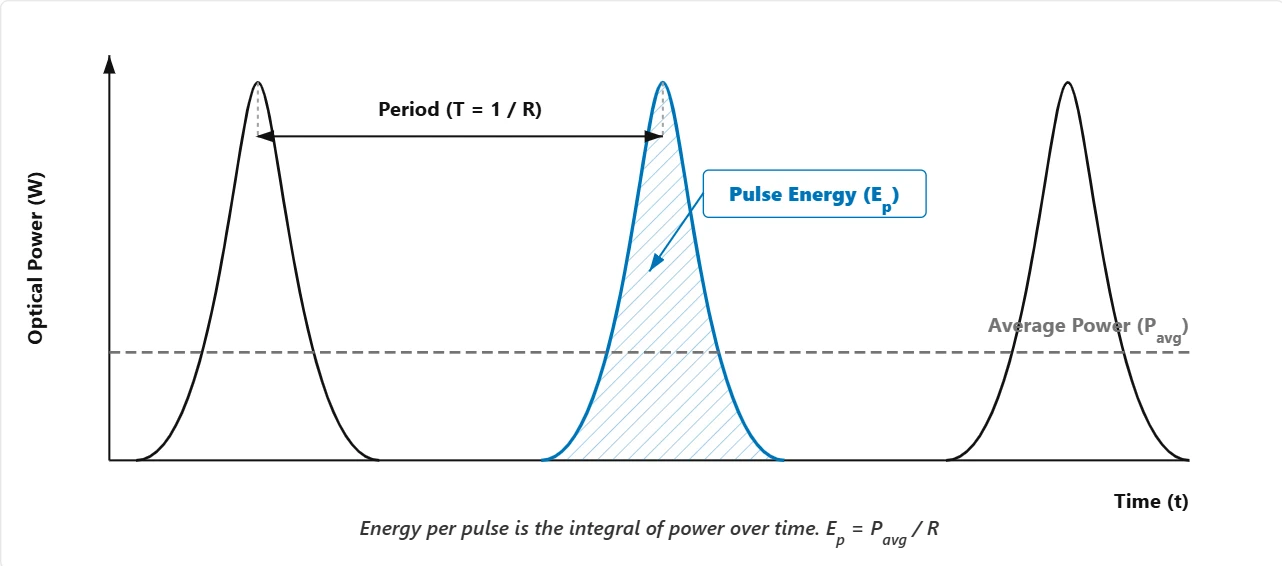

Time-domain graph of a pulsed laser showing optical power versus time. The area under a single pulse is highlighted to represent Laser Pulse Energy (Ep). A horizontal dashed line denotes the much lower Average Power (Pavg), and the time between pulse peaks is labeled as the Period, equal to 1 over the repetition rate (R).

Figure 1: Temporal power profile of a pulsed laser. The Pulse Energy (E_p) represents the integral of optical power over time (shaded area). Because the laser's energy is compressed into brief, periodic bursts spaced by the Period (T = 1/R), the instantaneous peak power is vastly higher than the continuous Average Power (P_avg).

Quick Reference

Low rep rate = higher energy for the same average power.
High rep rate = lower energy — energy is spread across more pulses.
For ablation and cutting, you need higher pulse energy, not just higher average power.
Optics are rated by fluence (J/cm²) — always verify pulse energy against your optic's LIDT.

Typical pulse energy by application

Logarithmic scale where each column represents a 1000× increase in energy

µJ

Frequency combs

1–100 pJ

Mode-locked fiber

0.1–10 nJ

LIDAR

1–100 µJ

Metal marking

0.5–1 mJ

Laser cleaning

10–100 mJ

Tattoo removal

200 mJ – 1 J

Q-switched Nd:YAG

1–100 J

NIF fusion

~2 MJ

Source: typical operating parameters and actual values vary by system configuration

Why Calculate Laser Pulse Energy?

In laser materials processing, average power is often a misleading metric. Two lasers can both output 10 Watts, but if one pulses once per second (10 J/pulse) and the other pulses a million times per second (10 µJ/pulse), they will have vastly different effects on a material. Pulse energy is what actually determines material interaction.

Key takeaways

Lower rep rate = higher energy for the same average power.
Optics are rated by fluence (J/cm²) — a single pulse can shatter a lens even at low average power.
Cold ablation requires high energy, not high average power.
Non-linear effects (SHG, two-photon) scale with pulse intensity — energy per pulse drives efficiency.

Why Repetition Rate Matters

1. The hammer analogy

Pulse energy is the weight of the hammer. Repetition rate is how fast you swing it. A light hammer swung fast (high rep, low energy) polishes. A heavy sledgehammer swung slowly (low rep, high energy) destroys. Same average force, completely different outcome.

2. Heat accumulation

If rep rate is too high, material cannot cool between pulses, causing a large Heat Affected Zone (HAZ). Lowering rep rate maintains high energy per pulse while allowing cold ablation. This is why ultrafast lasers run at MHz but with pJ to nJ pulses for delicate work.

3. Damage thresholds

Every optical component, including mirrors, lenses and fiber tips, has a Laser Induced Damage Threshold (LIDT) rated in J/cm². A single high-energy pulse can instantly crack a coating even if average power is modest. Always verify pulse energy against your optic's LIDT specification.

4. Frequency doubling (SHG)

Non-linear crystals require high peak intensity to convert light efficiently. A 1 mJ pulse generates second harmonic far more efficiently than a 1 µJ pulse at the same average power, because SHG efficiency scales with the square of peak intensity, not average power.

In-depth article Laser Peak Power Complete Guide How pulse energy relates to peak power, Gaussian vs square pulses, chirped pulse amplification, LIDT calculations and real-world examples.

→
