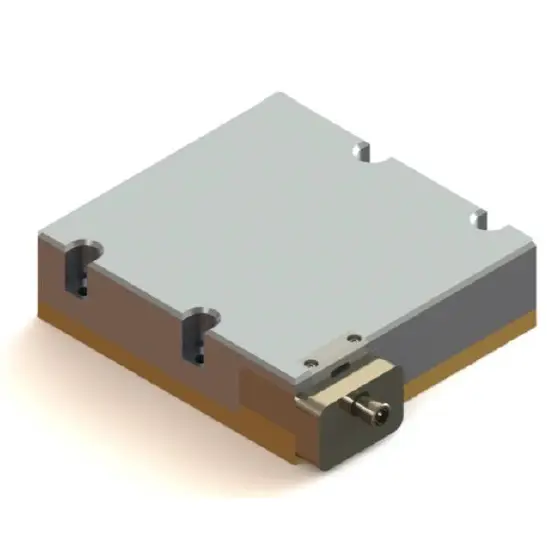

• Ultra-High 200 W Output
• Pluggable SMA905 Fiber ARchitecture
• Superior 50% Electrical Efficiency
• Visible 635 nm Red Aiming Beam
• High-Brightness Output
• Rugged Industrial Package
• Fiber laser pumping
• Solid-state laser pumping
• Laser Soldering
• Laser Plastic Welding
• Scientific research
• Custom OEM Integration
| SPECIFICATIONS ( 25°C ) | SYMBOL | UNIT | K976FPACA-200.0W | |||
|---|---|---|---|---|---|---|
| MINIMUM | TYPICAL | MAXIMUM | ||||
| OPTICAL DATA(1) |
CW Output Power | Po | W | 200 | — | — |
| Center Wavelength | λc | nm | 976 ± 10 | |||
| Spectral Width (FWHM) | Δλ | nm | — | 3 | — | |
| Wavelength Shift / Temp | Δλ/ΔT | nm/°C | — | 0.2 | — | |
| ELECTRICAL DATA |
Electrical-to-Optical Efficiency | PE | % | — | 50 | — |
| Operating Current | Iop | A | — | 18 | 19.6 | |
| Threshold Current | Ith | A | — | 1 | — | |
| Operating Voltage | Vop | V | — | 21 | 24 | |
| Slope Efficiency | η | W/A | — | 11.8 | — | |
| FIBER DATA |
Core Diameter | Dcore | μm | — | 400 | — |
| Numeric Aperture | NA | — | — | 0.22 | — | |
| Fiber length | Pluggable output, Fiber length is optional | |||||
| Fiber Termination | — | SMA905 / Customization | ||||
| AIMING BEAM |
Output Power | Pa | mW | — | 2 | — |
| Wavelength | λa | nm | 635 ± 10 | |||
| Operating Voltage | Va | V | — | 2.2 | — | |
| OTHERS | ESD | Vesd | V | — | — | 500 |
| Storage Temperature(2) | Tst | °C | -20 | — | 70 | |
| Lead Soldering Temp | Tis | °C | — | — | 260 | |
| Operating Case Temp(3) | Top | °C | 15 | — | 35 | |
| Relative Humidity | RH | % | 15 | — | 75 | |
We offer custom laser diodes according to your needs, either high-power or low-power versions, fiber-coupled or free-space, specific wavelengths, wavelength-stabilized options, and single or multi-emitter diodes. To discuss your custom laser diode needs, you can contact us by sending an email or using the contact form.
