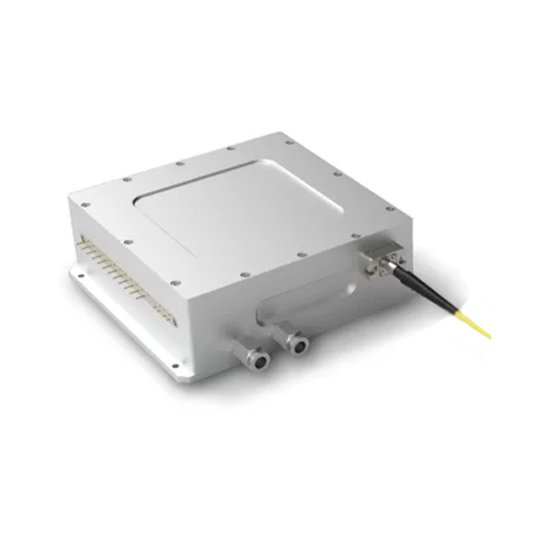

405 nm 30 W High-Power Fiber Coupled Laser Diode

405 nm 30 W High-Power Fiber Coupled Laser Diode

WAVELENGTH

405 nm

POWER

30 W

FIBER CORE

400 µm

NA

0.22

Key features

• 405 nm 30 W Output
• Advanced Multi-Module Stability
• Pluggable SMA905
• Integrated Water-Cooling
• Internal Thermal Monitoring

Applications

• 3D Printing
• Additive Manufacturing
• Laser Direct Writing (LDW)
• Biological Detection
• Scientific & Biophotonics Research

Product datasheet

Get a quote

Talk to an expert

Custom configurations & wavelengths available

Uncompromising performance

The 405 nm 30 W High Power Fiber Coupled Diode Laser is a specialized ultraviolet-violet light source designed for the most demanding industrial and scientific applications. Operating at the 405 nm wavelength, this module provides the high photon energy required for precise photo-chemical reactions, making it the definitive engine for laser direct writing (LDW), digital imaging, and high-speed UV resin curing. Delivering a potent 30 W of continuous-wave output through a high-brightness 400 µm fiber core, the K405 series utilizes a sophisticated 4-submodule architecture (60V per module) to ensure maximum spectral stability and power consistency. Built for 24/7 heavy industrial environments, this water-cooled system ensures absolute thermal protection even during long-duration procedures. Terminated with a pluggable SMA905 interface for rapid field replacement and integrated with technical thermal monitoring, it represents the industrial standard for 3D printing (SLA/DLP), biological detection, and advanced lithography research.

SPECIFICATIONS ( 25°C )SYMBOLUNITK405EMSCN-30.00WN1N-40022
MINIMUMTYPICALMAXIMUM
OPTICAL
DATA(1)		CW Output PowerPoW30——
Center Wavelengthλcnm405 ± 5
Operating CurrentIopA—0.50.54
Threshold CurrentIthA—0.11—
ELECTRICAL
DATA		Operating Voltage(2)VopV—60 * 4
Internal Configuration4 Submodules (60V per module)
FIBER
DATA		Core DiameterDcoreμm—400—
Cladding DiameterDcladμm—440—
Numeric ApertureNA——0.22—
Fiber TerminationPluggable SMA905
THERMAL
COOLING		Cooling MethodWater Cooling
Cooling Water Flow Rate—L/min2——
Operating Case Temperature(4)Top°C15—35
OTHERSESDVesdV——500
Storage Temperature(3)Tst°C-20—70
Relative HumidityRH%15—75
(1) Data measured under operation output at 30W @ 25°C.
(2) The laser consists of up to 4 submodules (60V per module). Power can be supplied separately or in series.
(3) A non-condensing environment is required for operation and storage.
(4) Operating temperature defined by the package case. Acceptable range is 15°C~35°C.
