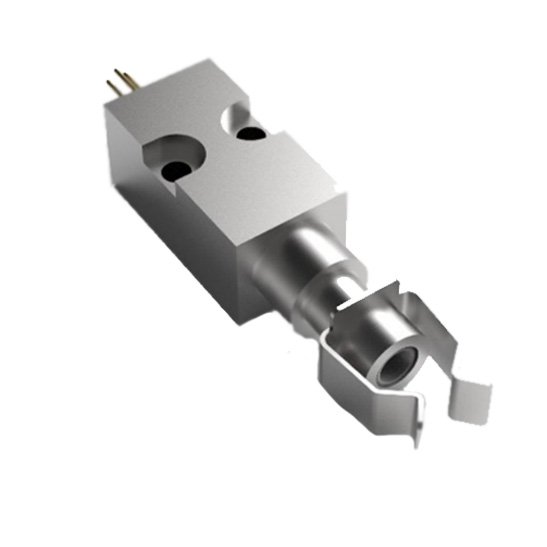

405 nm 160 mW Fiber Coupled Laser Diode

405 nm 160 mW Fiber Coupled Laser Diode

WAVELENGTH

405 nm

POWER

160 mW

FIBER CORE

40 µm

NA

0.22

Key features

• Ultra-Narrow 40 µm Fiber Core
• Visible 405 nm Violet Output
• Industrial Package
• Thermally Robust Housing
• High Spectral Consistency
• Industrial FC-Ferrule Termination

Applications

• CTP / CTS Printing
• Fluorescence Excitatio
• Medical Research
• Scientific Research

Product datasheet

Get a quote

Talk to an expert
Custom configurations & wavelengths available

Uncompromising performance

The 405 nm 160 mW Fiber Coupled Diode Laser is a high-brightness technical source engineered for applications requiring meticulous thermal interaction and superior beam quality. Characterized by its ultra-narrow 40 µm multimode fiber core and 0.22 Numerical Aperture (NA), this module provides an exceptionally concentrated energy density that is the industrial standard for Computer-to-Plate (CTP) thermal imaging and Computer-to-Screen (CTS) digital exposure systems. Built for long-term operational stability, the K405 series operates with a 20% electrical-to-optical conversion rate, specifically tuned for low-noise performance in scientific environments. Featuring a standard FC-Ferrule termination and a compact, rugged industrial housing, it delivers the consistent, reliable 405 nm violet output required for advanced medical diagnostics, fluorescence excitation, and precision laboratory instrumentation.

SPECIFICATIONS ( 25°C ) SYMBOL UNIT K405E03CN-0.160W
MINIMUM TYPICAL MAXIMUM
OPTICAL
DATA(1)		 CW Output Power Po mW 160 — —
Center Wavelength λc nm 405 ± 5
Spectral Width (FWHM) Δλ nm — 4 —
Wavelength Shift / Temp Δλ/ΔT nm/°C — 0.3 —
ELECTRICAL
DATA		 Electrical-to-Optical Efficiency PE % — 20 —
Threshold Current Ith mA — 30 —
Operating Current Iop mA — — 150
Operating Voltage Vop V — — 5.5
Slope Efficiency η W/A — 1.4 —
FIBER
DATA		 Core Diameter Dcore μm — 40 —
Numeric Aperture NA — — 0.22 —
Fiber Termination FC-Ferrule
OTHERS ESD Vesd V — — 500
Storage Temperature(2) Tst °C -20 — 70
Operating Case Temp(3) Ttop °C 15 — 35
Relative Humidity RH % 15 — 75
(1) Data measured under operation output at 160mW @ 25°C.
(2) A non-condensing environment is required for operation and storage.
(3) Operating temperature defined by the package case. Acceptable range is 15°C~35°C, but performance may vary.
