Laser diode drivers
Engineered with an advanced thermal
design ensuring consistent
performance even under high load
Continuous and pulsed operations,
providing users with the flexibility to
adapt to various application requirements
and experiment parameters.
Across a broad supply voltage
range from 11 to 36 Volts,
delivering ultra-stable performance
with high compliance
ephotonics laser diode driver, designed to
empower your high-power pump diodes
with the capability of up to 1600 Watt
driving power, conquers the toughest
conditions in both industrial
and laboratory settings.
Monitoring and externally
adjusting all the parameters
during the operation

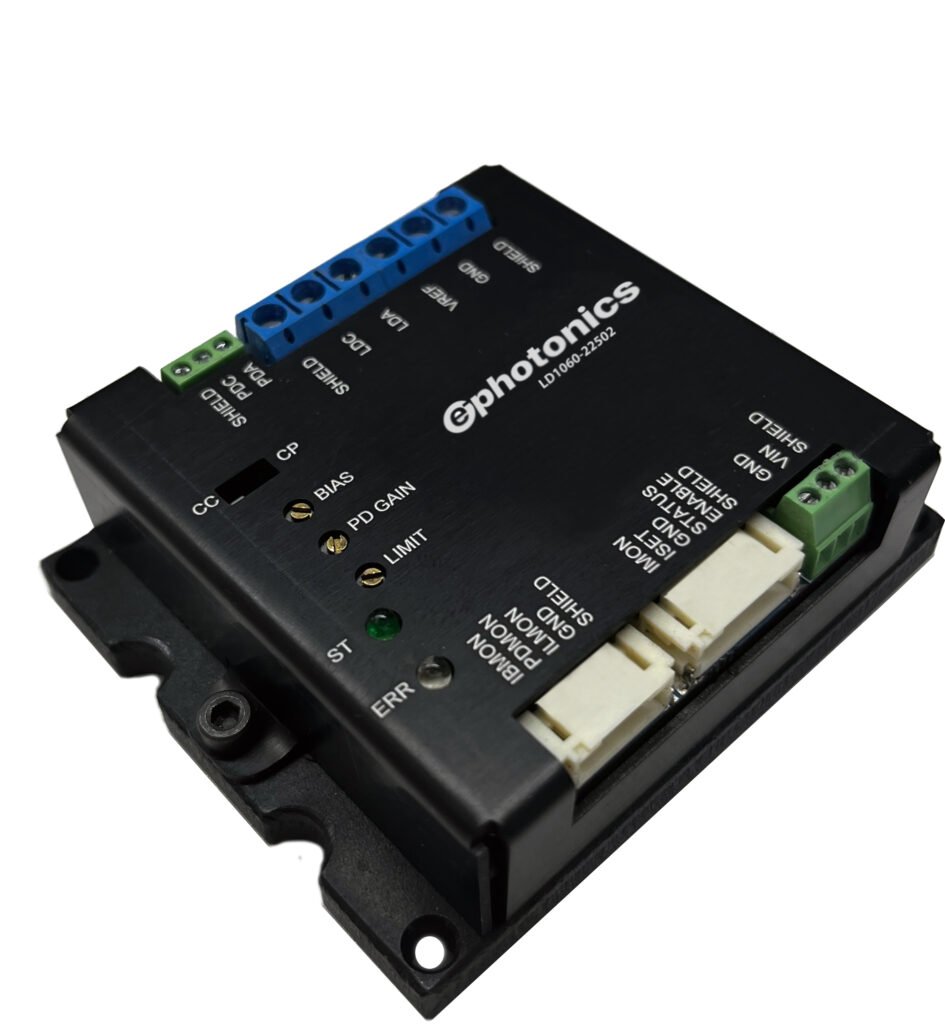

ephotonics’ high power laser diode drivers provide output powers up to 1600 Watt, with different combinations in ultra compact dimensions. LDD1060 is the one enable to drive diodes up to 10 Amper and 30 Volts level with CW and QCW options. It is ideal for most of the high power diodes used for industrial and laboratory lasers.
| Electrical Specifications | LDD1060 |
|---|---|
| Diode current | 0-10 A |
| Diode voltage | 0-30 V |
| Supply voltage | 11 V to 36 V |
| Output power | 600 W |
| Maximum power dissipation | 35 W |
| Power efficiency | >94% |
| Modulation frequency (Max) | 50 kHz |
| Rise time | 2 µs |
| Fall time | 2.5 µs |
| Diode current setpoint | 0–5 V |
| Long-term current stability | 250 ppm |
| Enable-Trigger | TTL |
| Current limit | Yes |
| Constant current and voltage option | Yes |
| General Specifications | LDD1060 |
|---|---|
| Operating temperature | 0 – 55 °C |
| Storage temperature | -40 – 85 °C |
| Dimensions | 57x60x22 mm |
| Weight | 140 g |
Operates across a broad supply voltage range from 11 to 36 Volts, delivering ultra-stable performance with high compliance up to 10 Amperes and 30 Volt.
A An industry-leading compact solution, measuring just 60x56x23 mm.The easy integration of its cooling plate preserves its exceptional compactness.
Continuous and pulsed operations providing users with the flexibility to adapt to various application requirements and experiment parameters.
Modulation up to 50 kHz with 7 µs rise time 8 µs down time is one of the fastest in the market between high current laser drivers.
Advanced thermal design ensuring consistent performance even under high load, with a robust cooling system that prevents overheating and extends the lifetime of driver.
ephotonics offers customized laser drivers for your operational parameters, ensuring peak performance in stability, current, and voltage for specialized applications.
Up to 600 Watt laser diode driver ideal for driving high power two-pin laser diodes
10 A
60 V
CW/QCW

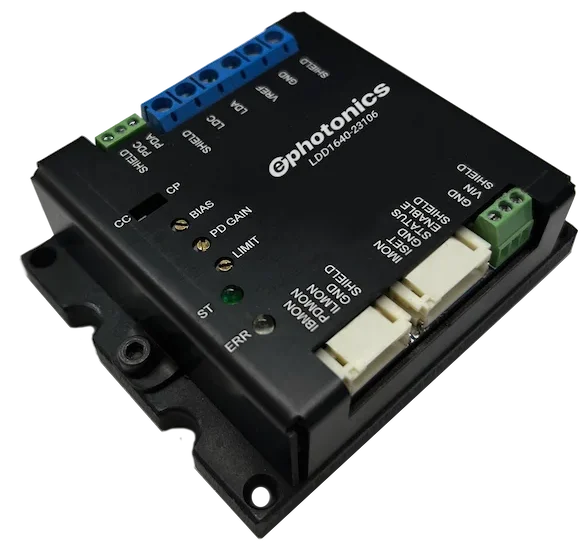

Up to 1600 Watt power makes this driver ideal for driving high power two-pin laser diodes
16 A
100 V
CW/QCW
We offer custom laser diode drivers according to your needs either high power or low power version, for single and multi-emitter diodes. To discuss your custom laser diode driver needs, you could contact us by sending us an e-mail or using the contact form.
