Wavenumber to wavelength converter

Enter a wavenumber to find the corresponding wavelength.
Standard formula: λ (nm) = 10⁷ / Wavenumber (cm⁻¹).

Wavenumber

cm⁻¹

Wavelength

λ = 10⁷ / ṽ

Enter a value to calculate.

How it works?

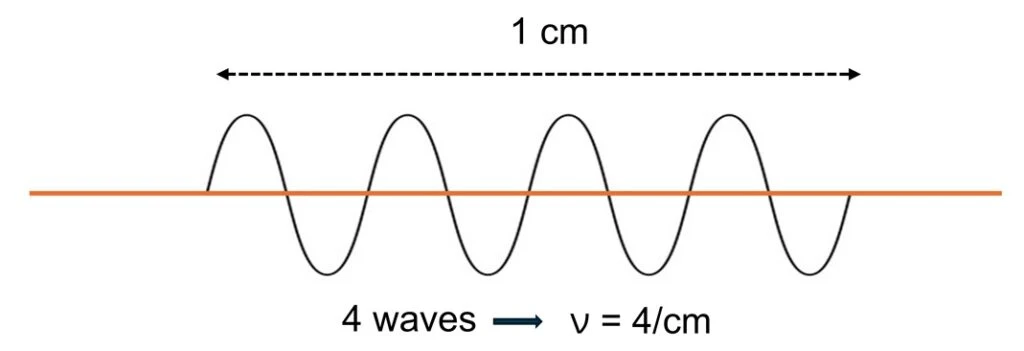

Wavenumber (ṽ) is the inverse of wavelength (λ). It represents how many wave cycles fit into a standard distance (usually 1 centimeter).

λ = 1 / ṽ

Basic Definition

λ (nm) = 10⁷ / ṽ
(cm^-1)

To find Nanometers

Where:

λ : Wavelength (in Nanometers).
ṽ : Wavenumber (in Inverse Centimeters).
10⁷ : Conversion factor (nm per cm).

Example: A wavenumber of 20,000 cm⁻¹ corresponds to 500 nm (Green light).

Converting Wavenumber back to Wavelength

While spectrometers record data in Wavenumbers (cm⁻¹) to keep energy scales linear, engineers building the actual detectors and lasers need to know the physical **Wavelength (nm)**. This calculator bridges the gap between the "chemical fingerprint" and the hardware used to detect it.

Infrared Bands Reference

Common molecular vibration bands and their physical wavelengths.

Vibration / Band	Wavenumber (cm⁻¹)	Wavelength (nm / µm)
Hydroxyl (O-H) Stretch	~3,600 cm⁻¹	2,777 nm (2.7 µm)
Alkane (C-H) Stretch	~2,950 cm⁻¹	3,389 nm (3.4 µm)
Carbon Dioxide (CO₂)	~2,350 cm⁻¹	4,255 nm (4.25 µm)
Carbonyl (C=O)	~1,700 cm⁻¹	5,882 nm (5.9 µm)
Fingerprint Region Start	1,500 cm⁻¹	6,666 nm (6.7 µm)
Silicon-Oxygen (Si-O)	~1,100 cm⁻¹	9,090 nm (9.1 µm)
Terahertz Gap Start	333 cm⁻¹	30,000 nm (30 µm)

Why convert back to nanometers?

1. Detector Selection

You know your molecule absorbs at 2950 cm⁻¹, but photodetector datasheets specify ranges in microns (e.g., "InGaAs: 0.9 - 1.7 µm"). You must convert the wavenumber to wavelength (3.4 µm) to realize you need a PbSe detector, not InGaAs.

2. Diffraction Grating Math

The physics of diffraction gratings depends on the physical spacing of the grooves relative to the physical wavelength (\(n\lambda = d \sin \theta\)). You cannot calculate dispersion angles directly from wavenumbers.

3. Laser Tuning

Quantum Cascade Lasers (QCLs) are often sold by "center wavenumber," but the optical cavity length and coating thickness are designed in physical length (microns).

4. Atmospheric Windows

Transmission through the atmosphere is defined by "windows" (e.g., the 8-12 µm thermal window). Converting wavenumbers helps you see if your signal will be absorbed by water vapor or pass through clearly.

Frequently Asked Questions

What is 1 cm⁻¹ in nanometers? (cm⁻¹ to nm)

1 cm⁻¹ = 10,000,000 nm (10⁷ nm). This comes directly from the conversion formula: λ(nm) = 10⁷ ÷ wavenumber(cm⁻¹). So a single wavenumber unit corresponds to an enormous wavelength of 10 meters expressed in nanometers — which is why wavenumbers are only practically useful in the infrared range where values are in the hundreds to thousands.

What is 1 nm in wavenumber (cm⁻¹)? (nm to cm⁻¹)

1 nm = 10,000,000 cm⁻¹ (10⁷ cm⁻¹). This is derived from the formula ν̃(cm⁻¹) = 10⁷ ÷ λ(nm), so 10⁷ ÷ 1 = 10⁷ cm⁻¹. In practice, no real photon has a 1 nm wavelength in optical applications — this is purely a unit reference value. Real-world examples: 532 nm (green laser) = 18,797 cm⁻¹, 1064 nm (Nd:YAG) = 9,398 cm⁻¹, 10,600 nm (CO₂ laser) = 943 cm⁻¹.

How do you convert nanometers (nm) to wavenumber (cm⁻¹)? (nm to cm⁻¹)

Use the formula: ν̃(cm⁻¹) = 10⁷ ÷ λ(nm). For example, a 1064 nm Nd:YAG laser gives 10⁷ ÷ 1064 = 9,398 cm⁻¹, and a 4,250 nm QCL gives 10⁷ ÷ 4,250 = 2,352 cm⁻¹ (right at the CO₂ absorption band). The formula is identical to the reverse — wavelength and wavenumber are simply reciprocals of each other.

How do you convert wavenumber to wavelength in nm?

Use the formula: λ(nm) = 10⁷ ÷ ν̃(cm⁻¹). For example, a carbonyl (C=O) stretch at 1,700 cm⁻¹ gives λ = 10⁷ ÷ 1,700 = 5,882 nm (≈ 5.9 µm). The relationship is a simple reciprocal — as wavenumber increases, wavelength decreases.

How do you convert wavenumber to wavelength in micrometers (µm)?

Use: λ(µm) = 10,000 ÷ ν̃(cm⁻¹). This is the most common form used in infrared spectroscopy. For example, 2,350 cm⁻¹ (CO₂ absorption) = 10,000 ÷ 2,350 = 4.25 µm.

What is 1000 cm⁻¹ in nm?

1,000 cm⁻¹ = 10,000 nm = 10 µm. This falls in the mid-infrared range and is relevant to Si-O bond vibrations and thermal imaging applications.

What is 3000 cm⁻¹ in nm?

3,000 cm⁻¹ = 3,333 nm (≈ 3.3 µm). This is close to the C-H stretch region (~2,950 cm⁻¹) commonly used for hydrocarbon detection and methane gas sensing.

Is wavenumber the same as frequency?

Not exactly. Wavenumber (cm⁻¹) is proportional to frequency but expressed as the number of wave cycles per centimeter, not per second. Frequency (Hz or THz) depends on the speed of light in a medium, while wavenumber is medium-independent, making it more consistent for spectroscopy comparisons.

What is the fingerprint region in nm?

The fingerprint region spans 500–1,500 cm⁻¹, which corresponds to 6,666 nm – 20,000 nm (6.7 µm – 20 µm). Every molecule produces a unique absorption pattern in this range, making it invaluable for chemical identification — but it requires specialized mid-infrared detectors like MCT or DTGS.
