The Numerical Aperture (NA) is a dimensionless number that characterizes the range of angles over which an optical system can accept or emit light. In optical fibers, it quantifies the "light-gathering ability" of the fiber based on the refractive index difference between the core and the cladding.

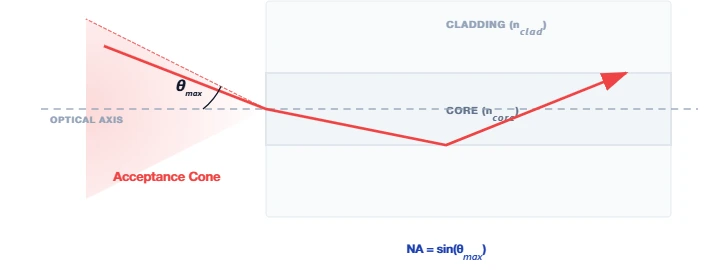

Diagram showing the acceptance cone of an optical fiber and the numerical aperture — **Figure 1:** The Numerical Aperture (NA) defines the acceptance cone of the fiber. Light entering within this cone is guided by Total Internal Reflection (TIR).

Understanding the Variables:

NA Numerical Aperture: The light-gathering power of the optical system.
n_core Core Index: The refractive index of the fiber's center material.
n_clad Cladding Index: The refractive index of the outer layer.
θ_max Acceptance Angle: The maximum half-angle of the entrance cone.

Engineering Significance For light to be guided via Total Internal Reflection, the core index must be greater than the cladding index. A higher NA allows the fiber to capture more light from an LED or laser but can increase modal dispersion in multi-mode fibers, limiting data bandwidth.

Why calculate Numerical Aperture?

Why this matters

Light Collection: Determines how much light a fiber or lens can physically capture.
Resolution Limit: A higher NA lens can resolve finer details (diffraction limit).
Coupling Efficiency: Critical for matching a laser source to a fiber to avoid signal loss.
Depth of Field: High NA means a tighter focus but a shallower depth of field.

The "Acceptance Cone" of Optics

The Numerical Aperture (NA) is essentially the measure of an optical component's "mouth." It defines the cone of angles within which light can enter or exit the system. For an optical fiber, it is derived from the refractive index contrast between the core and the cladding.

In simpler terms: A high NA means the fiber or lens is "wide open" and can accept light from steep angles. A low NA means it is "narrow" and highly selective, only accepting light that comes in nearly straight.

Critical Applications

1. Fiber Optic Splicing

When joining two fibers, their NAs must match. If you splice a low-NA fiber into a high-NA fiber, you lose light because the second fiber cannot "capture" all the angles coming from the first.

2. Microscopy Resolution

In microscopes, resolution is defined by λ / (2 · NA). To see smaller bacteria or cell structures, you don't just need magnification; you need a higher NA objective lens.

3. Laser Power Density

High NA lenses focus light to a smaller spot size. This is crucial for laser cutting and surgery, where you need maximum intensity (irradiance) at the focus point.

4. Sensor Sensitivity

Fiber optic sensors often use high-NA fibers to capture more scattered light (fluorescence or Raman signal) from the sample, improving signal-to-noise ratio.

The NA Trade-off

High NA (> 0.5): Captures more light and focuses tighter, but has a very short working distance and depth of focus.

Low NA (< 0.2): Captures less light but maintains a long, collimated beam over greater distances (ideal for telecom).
