Most laser beams follow a Gaussian ($TEM_{00}$) intensity profile, energy is concentrated at the center, not spread evenly across the beam. Dividing power by area gives the average density, which underestimates the true peak intensity at the center by 50%. To accurately predict laser damage thresholds, cutting speeds or safety limits, you must calculate the peak laser power density or fluence.

$$ I_{peak} = \frac{2 \cdot P}{\pi \cdot w^2} $$ Gaussian beam — CW

$$ F_{peak} = \frac{2 \cdot E}{\pi \cdot w^2} $$ Gaussian beam — Pulsed

Where:

I Laser Power Density (Irradiance) in $W/cm^2$ — the instantaneous intensity of a CW beam at the beam center.
F Fluence (Energy Density) in $J/cm^2$ — the energy delivered per unit area by a single pulse.
P Average power in Watts.
E Pulse energy in Joules.
w Beam radius at the $1/e^2$ intensity point — half of the beam diameter.

Top Hat beams: For a flat-top (uniform) beam profile, the factor of 2 is removed and the formula becomes $ I = P / \pi w^2 $. This is because energy is distributed evenly across the beam with no central peak.

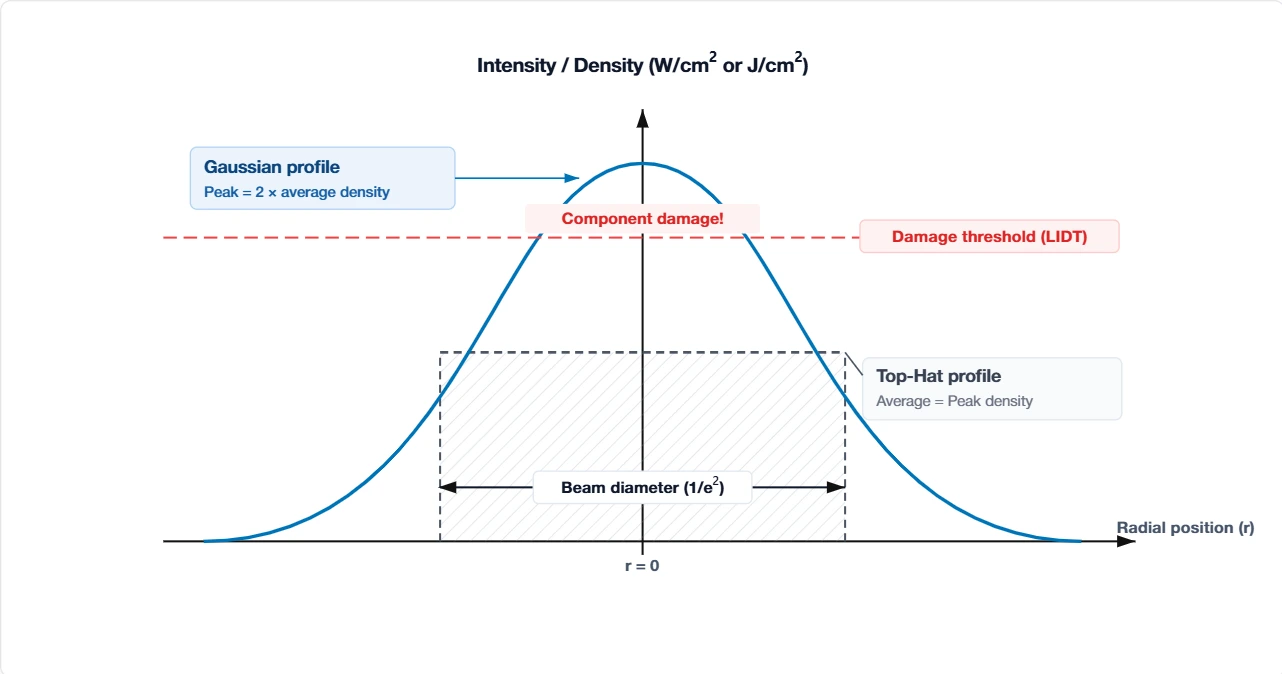

Diagram comparing Gaussian and Top-Hat laser power density profiles showing peak power density equals 2 times average for Gaussian beams and the laser induced damage threshold LIDT line — **Figure 1:** Gaussian vs Top-Hat beam intensity profiles. For a Gaussian beam, peak power density at the beam center is 2× the average value, ignoring this factor is the most common cause of damaged optics in pulsed laser systems.

Why calculate Power Density & Fluence?

Core Applications

Laser Damage (LIDT): Optics will shatter if the Fluence (J/cm²) exceeds the coating limit.
Ablation Threshold: Materials only vaporize when the Power Density (W/cm²) hits a specific critical mass.
Medical Safety: MPE (Maximum Permissible Exposure) is strictly defined in W/cm².
Laser Cleaning: Removing rust requires a specific fluence to sublime oxide without melting the substrate.

The Gaussian Multiplier

Many engineers make the fatal mistake of simply dividing Power by Area (P/A). This gives the average density. However, because most lasers are Gaussian (bell-shaped), the energy at the very center of the beam is twice as intense as the average.

This calculator automatically applies the 2× multiplier for Gaussian beams. Ignoring this factor is the #1 cause of damaged optics in the lab.

1. Selecting Optics (LIDT)

When buying a dielectric mirror, the spec sheet might say "LIDT > 5 J/cm² @ 10ns". If your laser pulses are 500 mJ and your beam is 3mm wide, you must calculate the peak fluence to ensure you don't burn a hole in the mirror on the first shot.

2. Laser Welding vs. Cutting

The difference between welding (melting) and cutting (vaporizing) is Power Density. By focusing the same 1kW laser to a smaller spot, you increase the W/cm² by a factor of 4 (inverse square law), shifting the process from conduction welding to keyhole cutting.

3. Dermatology

In laser tattoo removal, the fluence (J/cm²) determines if the ink pigment shatters. If the fluence is too low, nothing happens. If it is too high, you risk scarring the skin. Precise calculation is a matter of patient safety.

4. Flow Cytometry

In bio-instrumentation, cells pass through a laser focus. The fluorescence signal depends on the saturation intensity ($Isat$). Calculating the irradiance in the focus volume ensures the laser intensity is optimized to saturate the fluorophores without photobleaching them.
