The V Number (or normalized frequency) is a dimensionless parameter that determines the number of modes a step-index fiber can support. It relates the fiber's physical geometry and refractive indices to the wavelength of light.

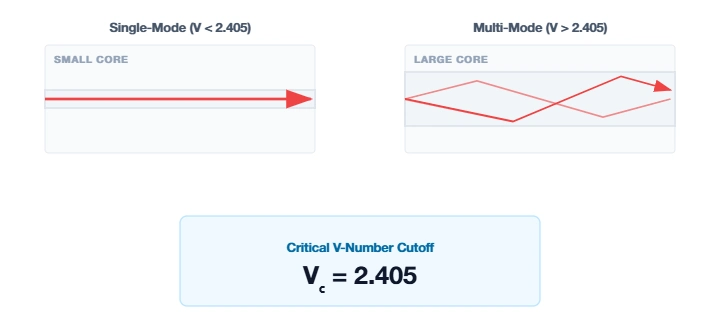

Diagram showing single-mode vs multi-mode fiber propagation based on V number — **Figure 1:** When V < 2.405, the fiber only supports a single propagation path (Single-Mode). Larger V numbers allow multiple modes (Multi-Mode).

Understanding the Variables:

V V Number: The normalized frequency of the fiber.
a Core Radius: Half of the physical core diameter.
λ Wavelength: The vacuum wavelength of the incident light.
n_core / n_clad Refractive Indices: The optical properties of the core and cladding.
NA Numerical Aperture: The light-gathering power of the fiber.

The Critical Cutoff (2.405) The single-mode cutoff occurs exactly at V = 2.405. If your calculated V number is lower than this value, the fiber is single-mode. If it is higher, the fiber is multi-mode. For very large V-numbers, the number of supported modes can be approximated as M ≈ V²/2.

Why calculate the V-Number?

Key Takeaways

Single-Mode Limit: Determines the exact wavelength where a fiber stops being single-mode.
Mode Count: Estimates how many optical modes can travel through a multi-mode fiber.
Bend Sensitivity: Low V-numbers (< 1.5) indicate weak guidance and high susceptibility to bending loss.
Design Control: Essential for tailoring core size and NA during fiber fabrication.

The "Normalized Frequency" of Fiber Optics

The V-Number (V) is arguably the most critical parameter in fiber optics because it acts as a gatekeeper. It tells you, with a single number, how light behaves inside the core. It combines the three main variables of a fiber: core radius (a), numerical aperture (NA), and wavelength (λ).

The magic number is 2.405. If your calculated V is below this threshold, physics dictates that only the fundamental mode (LP₀₁) can propagate. Above this number, higher-order modes enter the equation, introducing modal dispersion and signal distortion.

Critical Applications

1. Cutoff Wavelength Calculation

The "cutoff" is simply the wavelength where V = 2.405. Operating below this wavelength risks multi-mode noise; operating too far above it risks high bend loss.

2. Multi-Mode Capacity

For large-core fibers (where V >> 2.405), the number of modes can be approximated as M ≈ V² / 2. This is vital for calculating data capacity in MM fibers.

3. Evanescent Field Power

As V decreases (e.g., V < 1.5), the mode spreads significantly into the cladding. This is used in fiber sensors to detect changes in the external environment.

4. Dispersion Engineering

The V-number determines the waveguide dispersion component. By tuning V (changing core size), engineers can shift the zero-dispersion wavelength.

The Single-Mode Rule

For standard step-index fibers:

V < 2.405: Single-Mode Operation (Purest signal, no modal dispersion).
V > 2.405: Multi-Mode Operation (Higher power handling, but signal spreads over time).
